YHDM580B/5 High-precision vertical double-end grinding machine
Category: Product Center
Keywords: Yuhuan
Typical Machined Parts

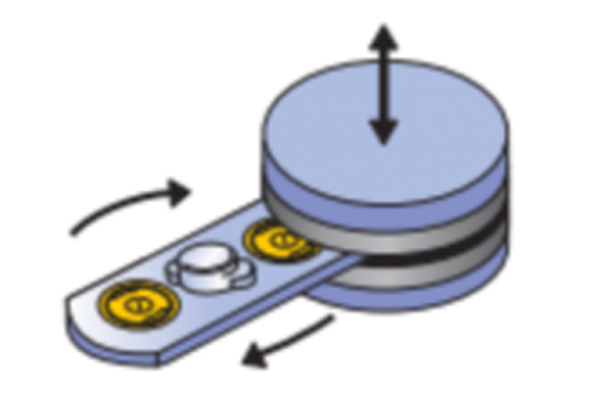

Processing Methods
Planetary grinding (XX)
Suitable for thick workpieces, workpieces with verticality requirements, large removal amount
Equipment Highlights
● The fuselage adopts a casting box-shaped structure, which has good shock absorption, good rigidity and reliable thermal stability.
● The cooling liquid is magnetically separated, filtered with paper tape 2-stage filtration, and recycled after the temperature of the cooler is controlled.
● Adopting a hinged disc feeding mechanism, it can be opened flexibly, and it is convenient to replace and dress the grinding wheel.
● Equipped with automatic grinding wheel dressing device, which is convenient and quick to ensure the grinding wheel dressing quality.
● The feed axis is driven by servo motor, with stable movement, accurate positioning and convenient adjustment.
Technical Parameter
|
Item/Product Model |
Unit |
YHDM580B/5 |
| Workpiece diameter |
mm |
Φ20-Φ240 |
| Workpiece thickness |
mm |
8-40 |
| Wheel size |
mm |
Φ585xΦ195 |
| Grinding head motor |
kw |
30 x 2 |
| grinding head speed |
rmp |
150-950 |
| Feeding tray motor power |
kw |
1.5 x 3 |
| Machine quality |
kg |
9000 |
| Machine Dimensions (L x W x H (L x W x H) |
mm |
2550x2300x2880 |
