YHDM580B/3 High-precision Vertical Double-end Grinding Machine
Category: Product Center
Keywords: Yuhuan
Typical Machined Parts
Processing Methods

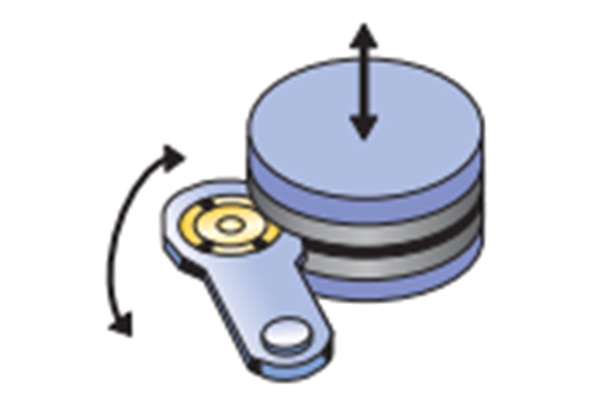

Oscillating grinding (BD)
Suitable for thick workpieces, workpieces with verticality requirements, large removal amount
Equipment Highlights
● The fuselage adopts a casting box-shaped structure, which has good shock absorption, good rigidity and reliable thermal stability.
● The cooling liquid is magnetically separated, filtered with paper tape 2-stage filtration, and recycled after the temperature of the cooler is controlled.
● Adopting a hinged disc feeding mechanism, it can be opened flexibly, and it is convenient to replace and dress the grinding wheel.
● Equipped with automatic grinding wheel dressing device, which is convenient and quick to ensure the grinding wheel dressing quality.
● Both the feed shaft and the feed shaft are driven by servo motors, with smooth movement, accurate positioning and easy adjustment.
Technical Parameter
|
Item/Product Model |
Unit |
YHDM580B/3 |
|
Workpiece diameter |
mm |
Φ20-Φ320 |
|
Workpiece thickness |
mm |
8-40 |
|
Wheel size |
mm |
Φ585xΦ195 |
|
Grinding head motor |
kw |
30x2 |
|
Grinding head speed |
rmp |
50-950 |
|
Feeding tray motor power |
kw |
1.5 |
|
Machine quality |
kg |
9000 |
|
Machine tool dimensions (length x width x height (LxWxH) |
mm |
2550x2300x2880 |
