YHDM580B High Precision Vertical Double End Grinder
Category: Product Center
Keywords: Yuhuan
Typical Machined Parts

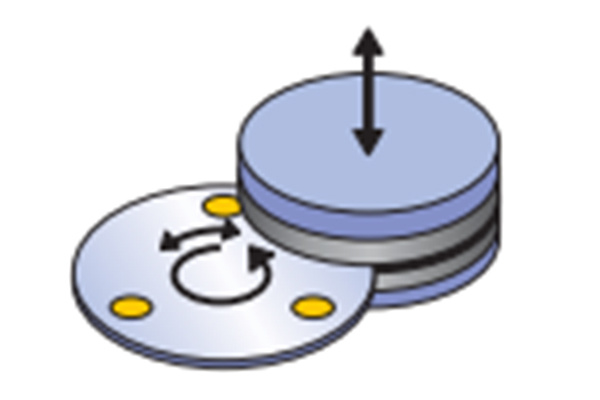

Processing Methods
Suitable for high-efficiency, multi-specification and variety processing
Suitable for high removal, thin workpieces (1-8mm)
Equipment Highlights
● The fuselage adopts a casting box-shaped structure, which has good shock absorption, good rigidity and reliable thermal stability.
● The cooling liquid is magnetically separated, filtered with paper tape 2-stage filtration, and recycled after the temperature of the cooler is controlled.
● Adopting a hinged disc feeding mechanism, it can be opened flexibly, and it is convenient to replace and dress the grinding wheel.
● Equipped with automatic grinding wheel dressing device, which is convenient and quick to ensure the grinding wheel dressing quality.
● Except for the spindle motor, all transmission chains are driven by servo motors, with stable movement, accurate positioning and easy adjustment.
Technical Parameter
|
Item/Product Model |
Unit |
YHDM580B |
|
Workpiece diameter |
mm |
Φ12-Φ120 |
|
Workpiece thickness |
mm |
0.8-40 |
|
Wheel size |
mm |
Φ585xΦ195 |
|
Grinding head motor |
kW |
22x2 |
|
Grinding head speed |
rpm |
50-950 |
|
Feeding tray motor power |
kW |
1.5 |
|
Machine quality |
kg |
8000 |
|
Machine tool dimensions (length x width x height (LxWxH) |
mm |
2550x2300x2880 |
