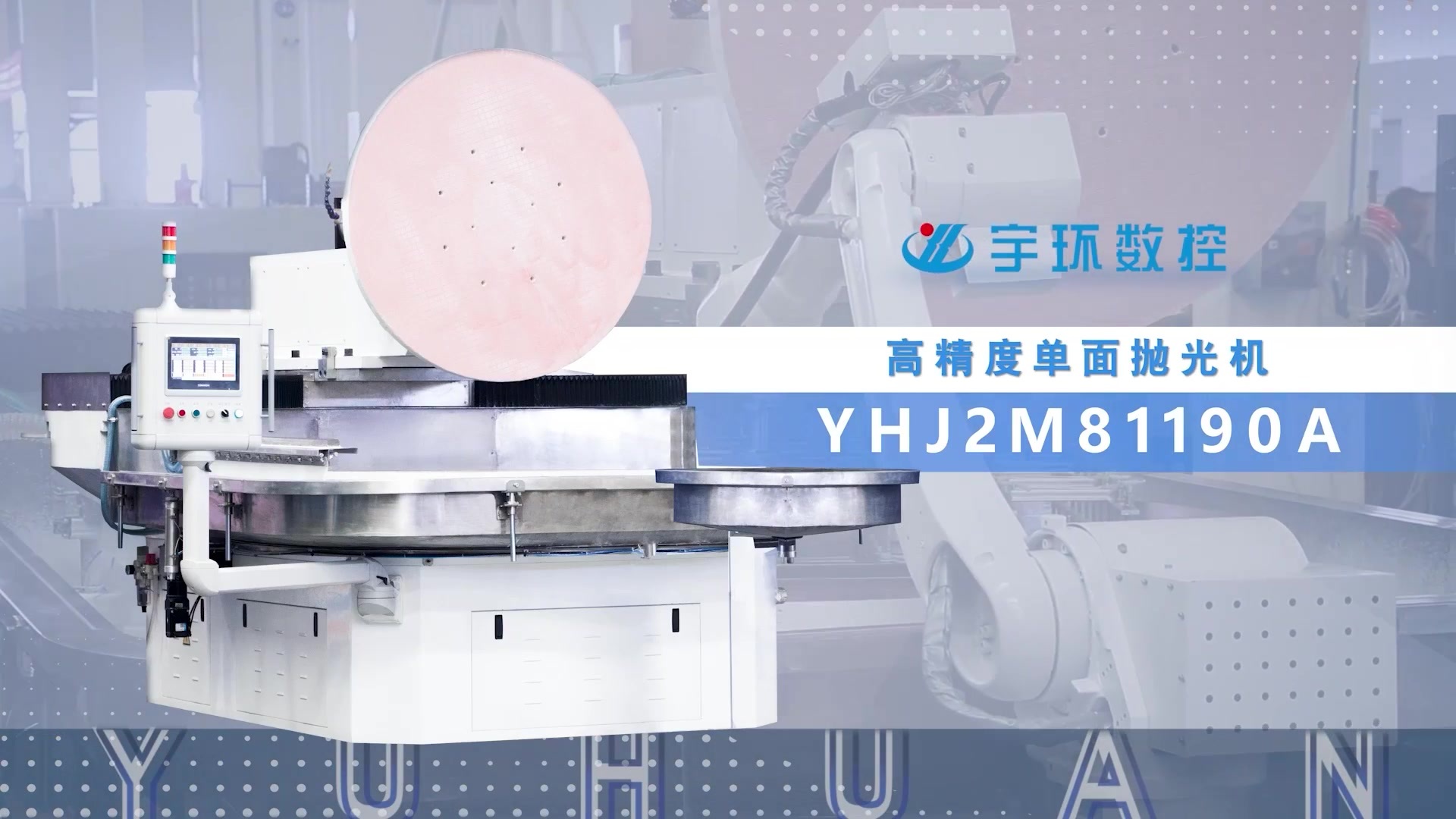

YH2M81190 High Precision Flat Polishing Machine
Category: Product Center
Keywords: Yuhuan
Typical Machined Parts
LCD
Equipment Highlights
● The machine tool has upper and lower throwing discs, the diameter of the upper disc is 1300mm, and the diameter of the lower disc is 1900mm. The upper disc can be turned 90°. The disc can be used as a mounting workpiece or as a polishing disc, and the size of the workpiece that can be processed is less than or equal to 1850.
● The upper plate can be moved horizontally to form a reciprocating motion to ensure the smoothness and smoothness of the workpiece processing. The horizontal travel of the upper plate is 1100mm.
● The machine tool is controlled by PLC and touch screen, the process parameters under different pressure conditions can be preset on the touch screen, and the lower plate motor is driven by variable frequency motor to realize stepless frequency conversion speed regulation.
Technical Parameter
|
Project |
Unit |
Parameter |
| Lower polishing disc size (can be customized) |
mm |
φ1900, flatness tolerance ±0.01 |
| Lower polishing disc rotation speed |
rpm |
0~50 |
| Upper polishing disc size (can be customized) |
mm |
φ1400, flatness tolerance ±0.01 |
| Swing range of upper polishing disc |
mm |
≤700 |
| The maximum size of the workpiece on the plate |
mm |
①Circular workpiece ≦1900 (bottom-mounted); ②Square workpiece 1345x1345 (bottom-mounted); ③ Rectangular workpieces can be used to manufacture large-sized workpieces (bottom-mounted) |
| Polishing liquid bucket volume (can be customized) |
L |
40 |
| Stirring motor |
W |
400 |
| Polishing Fluid Pump |
W |
375W |
| Lower polishing disc motor |
/ |
22kW1450rpm3-phase 380V |
| Upper polishing disc motor |
/ |
2.2kW1450rpm2 phase 220V |
| Swing Servo Motor |
/ |
3.0kW2000rpm3-phase 380V |
| Installed capacity |
KVA |
about 25 |
| Machine Dimensions (LxWxH) |
mm |
About 4000x3000x2400 |
| machine weight |
kg |
About 10,000 |
